This window lets you view translation conflicts when ACLs are being pasted and translated in the ACL Editor left-panel tree. The top panel lists the ACLs where conflicts exist. The lower-left panel shows the rules for the ACL selected in the top panel with their original parameters. The lower-right panel shows how the rules will be changed if they are translated. The specific rules where a conflict exists appear with a red exclamation mark in the list and a comment below that describes the nature of the conflict. The translation also offers an option to translate IP rules where a source/destination port is defined, by replacing the single IP rule with a TCP rule and a UDP rule.

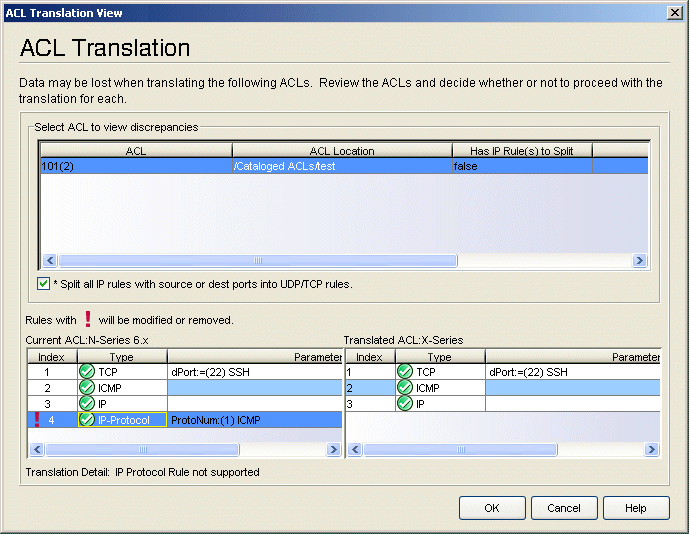

Click areas in this sample ACL Translation View for more information.
- Select ACL to view discrepancies
- This table lists the ACLs where conflicts exist in the current Paste and Translate operation.
- ACL - This is the ACL Name.
- ACL Location - The path in the ACL Editor tree for this ACL.
- Has IP Rule(s) to Split - Indicates whether the current ACL includes an IP rule where ports are specified: true or false.
- ACLs with the Translate column checked are translated and pasted into the target. ACLs where the Translate checkbox is not checked are not translated, but are also pasted into the target.
- Split all IP rules with source or destination ports into UDP/TCP rules
- When checked, IP rules having ports specified will be split into two rules, a UDP rule and a TCP rule that will be the equivalent of the original rule.
- Current ACL
- This table shows the rules in their original ACL type. A red exclamation mark identifies
rules that will be modified (split) or removed by translation.
- Index - Table row reference.
- Type - Rule type in the original ACL type.
- Parameters - Source, Destination, etc. specified in the original ACL type.
- Translated ACL
- This table shows the rules as they will be in the translated ACL.
- Index - Table row reference.
- Type - Rule type in the translated ACL type.
- Parameters - Source, Destination, etc. in the translated ACL type.
