ACL Rule Translation View

This view lets you review and make decisions about translation conflicts when pasting incompatible rules that have been cut or copied from one ACL type to another ACL type. Rules that are in conflict appear in the left panel with their original parameters. If the rules being pasted can be translated, they appear in the right panel showing the effects of the translation. Rules that cannot be translated are removed. The translation also offers an option to translate IP rules where a source/destination port is defined, by replacing the single IP rule with a TCP rule and a UDP rule.

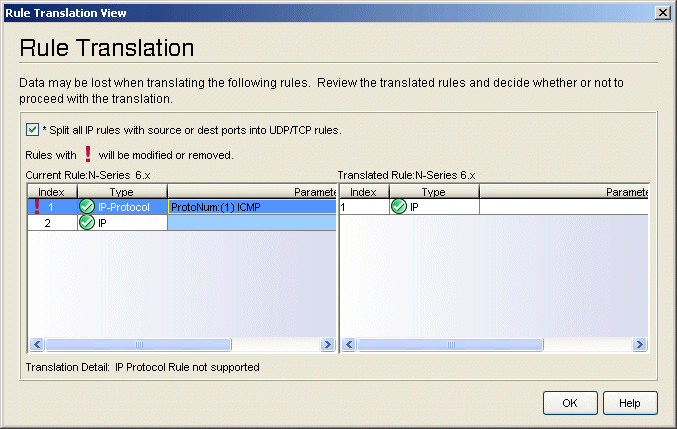

Click areas in this sample Rule Translation View for more information.

Rule Translation View

Split all IP rules with source or destination ports into UDP/TCP rules
When checked, IP rules having ports specified will be split into two rules, a UDP rule and a TCP rule that will be the equivalent of the original IP rule.
Current Rule(s)
This list shows the rules as defined in their original ACL type.
Index
Table row reference
Type
Rule type in the original ACL type.
Parameters
Source, Destination, etc. specified in the original rule.
Translated Rule(s)
This list shows the rules after translation.
Index
Table row reference
Type
Rule type after translation. When IP rules are split, two rules, one UDP and one TCP replace the original IP rule.
Parameters
Source, Destination, etc. after translation.
OK Button
Performs the translation, pasting both the translated rule(s) and any other compatible rules into the target ACL and closes the Rule Translation View.
