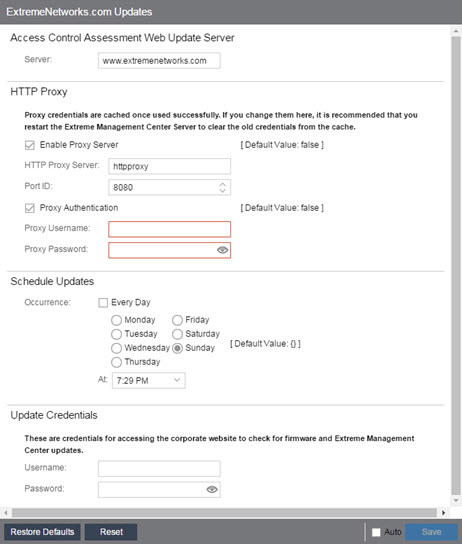

Selecting ExtremeNetworks.com Updates in the left panel of the Options tab provides the following view, where you can configure options for accessing the ExtremeNetworks.com website to obtain information about the latest Extreme Management Center product releases and Extreme Networks firmware releases available for download. These settings apply to all users. You must be a member of an authorization group that includes the "Request and Configure ExtremeNetworks.com Support" capability in order to configure these options.
Changing a value from the system default causes a Default Value button to appear. Clicking this button changes the field back to the system default value.
- Access Control Assessment Web Update Server
- Displays the web update server used by Extreme Access Control to update Access Control assessment server software. This update operation pertains only to Access Control on-board agent-less assessment servers.
- HTTP Proxy Server
- If your
network is protected by a firewall, select the Enable Proxy Server checkbox and enter your proxy server
address and port ID. Consult your network administrator for this
information. If your proxy server requires authentication, select the Proxy
Authentication checkbox and enter the proxy username and password
credentials. The credentials you add here must match the credentials
configured on the proxy server. Proxy credentials are cached once used
successfully. If you change them here, restart
the Management Center Server to clear the old credentials from the cache.
NOTE: The update procedure uses these proxy settings only when necessary; otherwise, the settings are ignored.
- Schedule Updates
- This section lets you schedule when Management Center checks for software updates:
- To check for updates every day — Select the Every Day checkbox, then select the time to run the check in the At drop-down menu.
- To check for updates once a week — Select the radio button that corresponds to the day of the week on which you want to run the check, then select the time to run the check in the At drop-down menu.
- To disable scheduled updates — Do not select the Every Day checkbox or any of the radio buttons or click the Default Value button to clear your selection.
- Update Credentials
- Enter the credentials used to access the ExtremeNetworks.com website to obtain firmware and Management Center update information. You need to create an account at ExtremeNetworks.com and define a username and password for the account, then enter the same credentials here.
