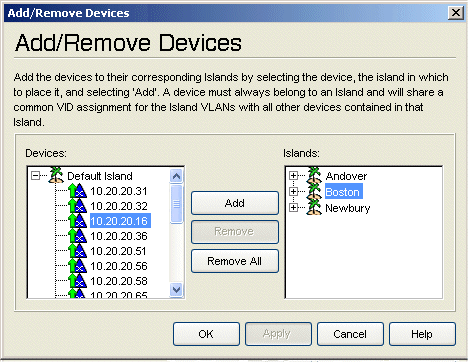

This window enables you to add and remove devices from VLAN islands. To access the window, right-click a VLAN island in the left-panel VLANs tab and select Add/Remove Devices from the menu.
Devices contained in an island will be assigned a VID for each Island VLAN that is unique to the island, allowing roles and rules which use the Island VLANs to isolate users to that island. A device must always belong to an island, and will share a common VID assignment for the Island VLANs with all other devices contained in that island.
To add a device to an island, select the device in the left panel and either drag it to the island, or select the island and click Add. You can also select and add multiple devices.
Click the graphic for more information.
- Islands
- This panel displays all the user-defined VLAN islands and the devices that are members of the islands. Select a device and click Remove to remove the device from the island.
- Add Button
- Adds the device(s) selected in the Devices panel to the island selected in the Islands panel. You can also add a device using drag and drop.
